ASHUN
Brand:ASHUN

Modular Valve

Pneumatic SeriesHydraulic Cylinder

E-brochures (MCV Series) E-brochures (MPCV Series) E-brochures (MRV Series) E-brochures (MBRV Series) E-brochures (MSV Series) E-brochures (MTCV Series) E-brochures (RV Series) E-brochures (SBG Series) E-brochures (SRG Series) E-brochures (BRV Series) E-brochures (BRCV Series)

Request For Quotation

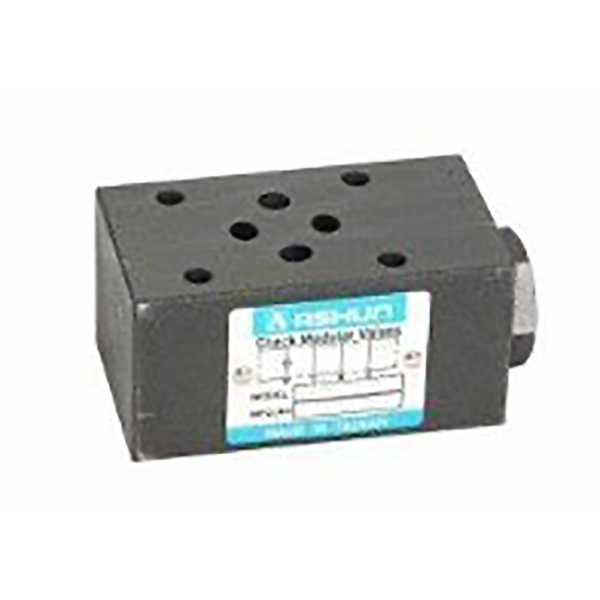

Check Modular Valves (MCV Series)
MODEL VALVE SIZE WORKING TYPE PRESSURE ADJ. RANGE (BAR) MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
   MCV-02P-05-10 1/4″ P : P Port 05 : 0.5 50 : 5 250 40
MCV-02P-50-10
MCV-02A-05-10 A : A Port
MCV-02A-50-10
MCV-02B-05-10 B : B Port
MCV-02B-50-10
MCV-02T-05-10 T : T Port
MCV-02T-50-10
MCV-02W-05-10 W : A & B Port
MCV-02W-50-10
MCV-03P-05-10 3/8″ P : P Port 05 : 0.5 50 : 5 250 80
MCV-03P-50-10
MCV-03A-05-10 A : A Port
MCV-03A-50-10
MCV-03B-05-10 B : B Port
MCV-03B-50-10
MCV-03T-05-10 T : T Port
MCV-03T-50-10
Pilot Operated Modular Valves (MPCV Series)
MODEL VALVE SIZE WORKING TYPE PRESSURE ADJ. RANGE (BAR) MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
MPCV-02A-05-10 1/4″ A : A Port 05 : 0.5 50 : 5 250 40
MPCV-02A-50-10
MPCV-02B-05-10 B : B Port
MPCV-02B-50-10
MPCV-02W-05-10 W : A & B Port
MPCV-02W-50-10
MPCV-03A-05-10 3/8″ A : A Port 05 : 0.5 50 : 5 250 80
MPCV-03A-50-10
MPCV-03B-05-10 B : B Port
MPCV-03B-50-10
MPCV-03W-05-10 W : A & B Port
MPCV-03W-50-10
MPCV-04A-05-10 1/2″ A : A Port 05 : 0.5 50 : 5 250 130
MPCV-04A-50-10
MPCV-04B-05-10 B : B Port
MPCV-04B-50-10
MPCV-04W-05-10 W : A & B Port
MPCV-04W-50-10
MPCV-06A-05-10 3/4″ A : A Port 05 : 0.5 50 : 5 250 190
MPCV-06A-50-10
MPCV-06B-05-10 B : B Port
MPCV-06B-50-10
MPCV-06W-05-10 W : A & B Port
MPCV-06W-50-10

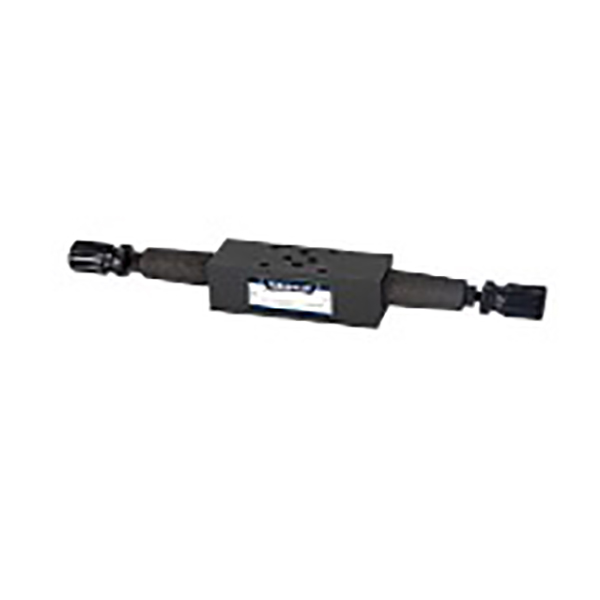

Relief Modular Valves (MRV Series)
MODEL VALVE SIZE WORKING TYPE PRESSURE ADJ. RANGE (BAR) MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
MRV-02P-C-20 1/4″ P :P Port C :  7-140 H : 70-210 250 40
MRV-02P-H-20
MRV-02A-C-20 A : The Port
MRV-02A-H-20
MRV-02B-C-20 B : B Port
MRV-02B-H-20
MRV-02W-B-10 1/4″ W :A & B Port B : 7-70Bar C : 35-140Bar H : 70-210Bar 250 40
MRV-02W-C-10
MRV-02W-H-10
MRV-03P-B-10 3/8″ P : P port B : 7-70Bar C : 35-140Bar H : 70-210Bar 250 80
MRV-03P-C-10
MRV-03P-H-10
MRV-03A-B-10 A : The Port
MRV-03A-C-10
MRV-03A-H-10
MRV-03B-B-10 B : B Port
MRV-03B-C-10
MRV-03B-H-10
MRV-03W-B-10 W : A & B Port
MRV-03W-C-10
MRV-03W-H-10
MRV-04P-B-10 1/2″ P : P port B : 7-70Bar C : 35-140Bar H : 70-210Bar 250 130
MRV-04P-C-10
MRV-04P-H-10
MRV-04A-B-10 A : The Port
MRV-04A-C-10
MRV-04A-H-10
MRV-04B-B-10 B : B Port
MRV-04B-C-10
MRV-04B-H-10
MRV-06P-B-10 3/4″ P : P port B : 7-70Bar C : 35-140Bar H : 70-210Bar 250 190
MRV-06P-C-10
MRV-06P-H-10
MRV-06A-B-10 A : The Port
MRV-06A-C-10
MRV-06A-H-10
MRV-06B-B-10 B : B Port
MRV-06B-C-10
MRV-06B-H-10

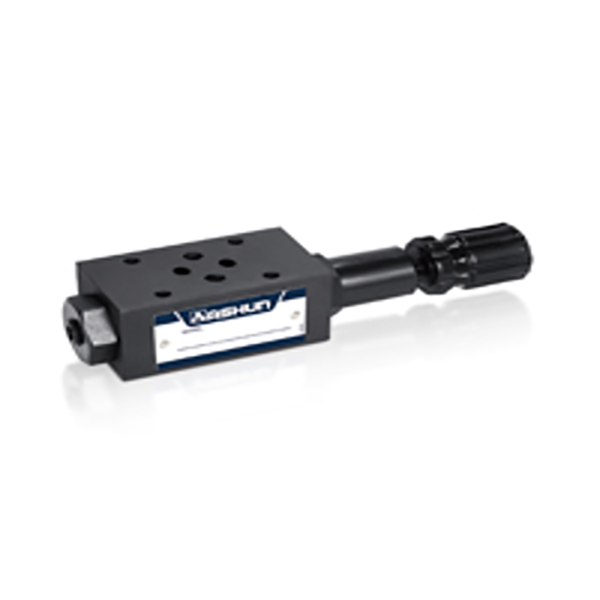

Reducing Modular Valves (MBRV Series)
MODEL VALVE SIZE WORKING TYPE PRESSURE ADJ. RANGE (BAR) MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
MBRV-02P-A-*-*-* 1/4″ P :P Port A : 3-35 B : 7-70 C : 35-140 H : 70-210 250 40
MBRV-02P-B-*-*-*
MBRV-02P-C-*-*-*
MBRV-02P-H-*-*-*
  MBRV-02A-A-*-*-* A : A Port A : 3-35 B : 7-70 C : 35-140 H : 70-210 250
MBRV-02A-B-*-*-*
MBRV-02A-C-*-*-*
MBRV-02A-H-*-*-*
MBRV-02B-A-*-*-* B : B Port A : 3-35 B : 7-70 C : 35-140 H : 70-210 250
MBRV-02B-B-*-*-*
MBRV-02B-C-*-*-*
MBRV-02B-H-*-*-*
MBRV-03P-B-*-*-* 3/8″ P :P Port B : 7-70 C : 35-140 H : 70-210 250 80
MBRV-03P-C-*-*-*
MBRV-03P-H-*-*-*
MBRV-03A-B-*-*-* A : A Port B : 7-70 C : 35-140 H : 70-210 250
MBRV-03A-C-*-*-*
MBRV-03A-H-*-*-*
MBRV-03B-B-*-*-* B : B Port B : 7-70 C : 35-140 H : 70-210 250
MBRV-03B-C-*-*-*
MBRV-03B-H-*-*-*
MBRV-04P-B-*-*-* 1/2″ P :P Port B : 7-70 C : 35-140 H : 70-210 250 130
MBRV-04P-C-*-*-*
MBRV-04P-H-*-*-*
MBRV-04A-B-*-*-* A : A Port B : 7-70 C : 35-140 H : 70-210 250
MBRV-04A-C-*-*-*
MBRV-04A-H-*-*-*
MBRV-04B-B-*-*-* B : B Port B : 7-70 C : 35-140 H : 70-210 250
MBRV-04B-C-*-*-*
MBRV-04B-H-*-*-*
MBRV-06P-B-*-*-* 3/4″ P :P Port B : 7-70 C : 35-140 H : 70-210 250 190
MBRV-06P-C-*-*-*
MBRV-06P-H-*-*-*
MBRV-06A-B-*-*-* A : A Port B : 7-70 C : 35-140 H : 70-210 250
MBRV-06A-C-*-*-*
MBRV-06A-H-*-*-*
MBRV-06B-B-*-*-* B : B Port B : 7-70 C : 35-140 H : 70-210 250
MBRV-06B-C-*-*-*
MBRV-06B-H-*-*-*

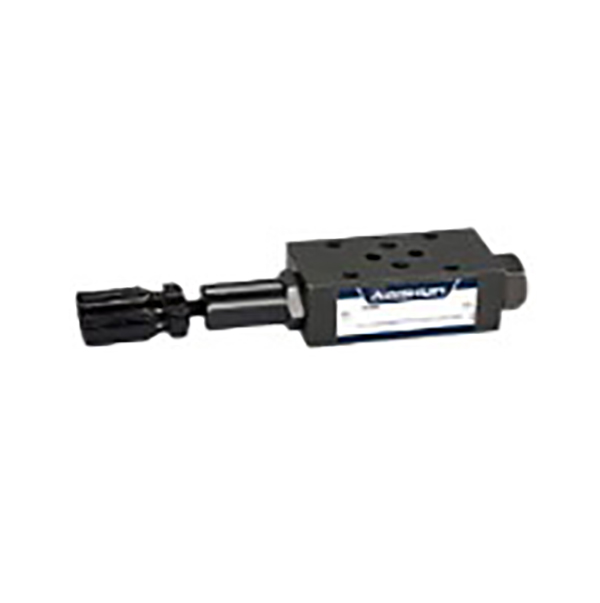

Sequence Modular Valves (MSV Series)
MODEL VALVE SIZE WORKING TYPE PRESSURE ADJ. RANGE (BAR) MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
MSV-02P-A-10 1/4″ P :P Port A : 3-35 B : 7-70 C : 35-140 H : 70-210 250 40
MSV-02P-B-10
MSV-02P-C-10
MSV-02P-H-10
MSV-03P-B-10 3/8″ P :P Port B : 7-70 C : 35-140 H : 70-210 250 80
MSV-03P-C-10
MSV-03P-H-10
MSV-04P-B-10 1/2″ P :P Port B : 7-70 C : 35-140 H : 70-210 250 130
MSV-04P-C-10
MSV-04P-H-10
MSV-06P-B-10 3/4″ P :P Port B : 7-70 C : 35-140 H : 70-210 250 190
MSV-06P-C-10
MSV-06P-H-10

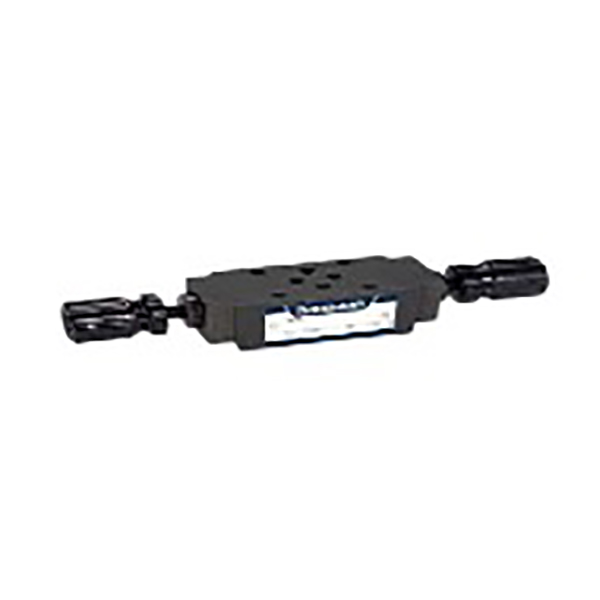

Throttle and Check Modular Valves (MTCV Series)
MODEL VALVE SIZE WORKING TYPE THROTTLE WAY MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
MTCV-02A-X-10 1/4″ A : A Port X : Meter Out Y : Meter In 250 40
MTCV-02A-Y-10
MTCV-02B-X-10 B : B Port
MTCV-02B-Y-10
MTCV-02W-X-10 W : A & B Port
MTCV-02W-Y-10
MTCV-02P-10 P :P Port NONE
MTCV-03P-X-10 3/8″ P :P Port X : Meter Out Y : Meter In 250         80
MTCV-03P-Y-10
MTCV-03A-X-10 A : A Port
MTCV-03A-Y-10
MTCV-03B-X-10 B : B Port
MTCV-03B-Y-10
MTCV-03W-X-10 W : A & B Port
MTCV-03W-Y-10
MTCV-04P-X-10 1/2″ P :P Port X : Meter Out Y : Meter In 250       130
MTCV-04P-Y-10
MTCV-04A-X-10 A : A Port
MTCV-04A-Y-10
MTCV-04B-X-10 B : B Port
MTCV-04B-Y-10
MTCV-06P-X-10 3/4″ P :P Port X : Meter Out Y : Meter In 250 190
MTCV-06P-Y-10
MTCV-06A-X-10 A : A Port
MTCV-06A-Y-10
MTCV-06B-X-10 B : B Port
MTCV-06B-Y-10

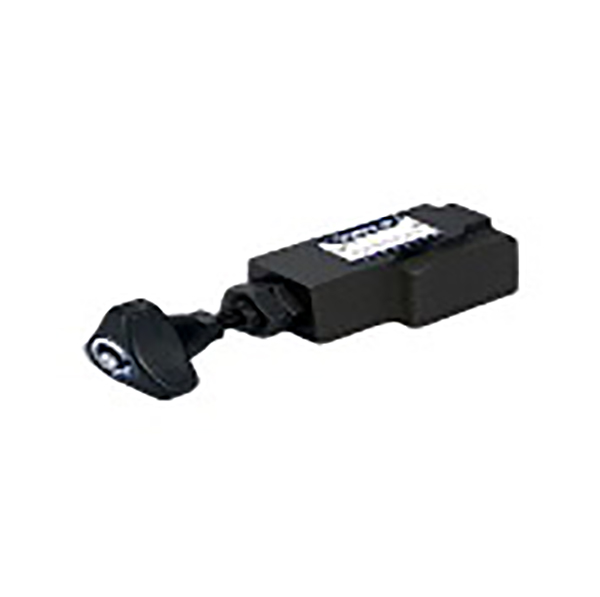

Pressure Control Valves (RV Series)
MODEL VALVE SIZE TYPE OF CONNECTION PRESSURE ADJ.RANGE MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
RV-01G-B-10 1/8″ G : Sub-plated Type B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 2
RV-01G-C-10
RV-01G-H-10
RV-01T-B-10 T : Thread Type
RV-01T-C-10
RV-01T-H-10
RV-02G-B-10 1/4″ G : Sub-plated Type B : 7-10 bar C : 14-140 bar H : 35-120 bar 210           16
RV-02G-C-10
RV-02G-H-10
RV-02T-B-10 T : Thread Type
RV-02T-C-10
RV-02T-H-10
RV-03G-B-10 3/8″ G : Sub-plated Type B : 7-10 bar C : 14-140 bar H : 35-120 bar 210           100
RV-03G-C-10
RV-03G-H-10
RV-03T-B-10 T : Thread Type
RV-03T-C-10
RV-03T-H-10
RV-04T-B-10 1/2″ T : Thread Type B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 100
RV-04T-C-10
RV-04T-H-10
RV-06G-B-10 3/4″ G : Sub-plated Type B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 200
RV-06G-C-10
RV-06G-H-10
RV-06T-B-10 T : Thread Type
RV-06T-C-10
RV-06T-H-10
RV-10G-B-10 1-1/4″   G : Sub-plated Type B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 200
RV-10G-C-10
RV-10G-H-10
RV-10T-B-10   T : Thread Type
RV-10T-C-10
RV-10T-H-10

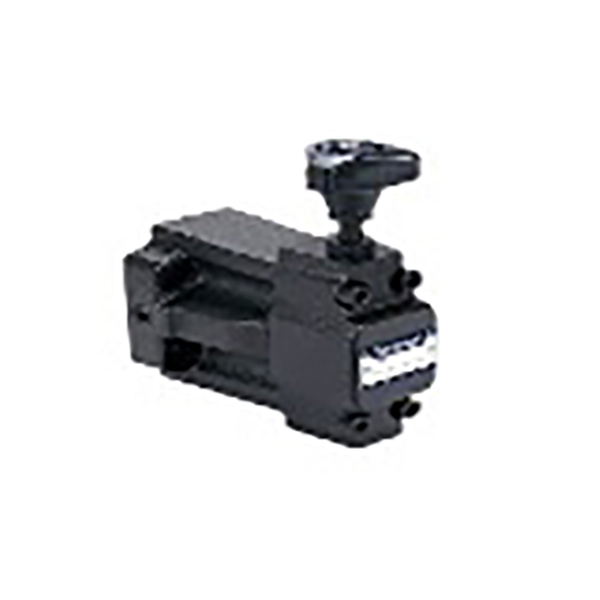

Low Noise Type Pilot Operated Relief Valve (SBG Series)
MODEL VALVE SIZE PRESSURE ADJ.RANGE HANDLE DIRECTION MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
SBG-03B-R-10 3/8″ B : 7-10 bar R TYPE L TYPE 210 100
SBG-03B-L-10
SBG-03C-R-10 C : 14-140 bar
SBG-03C-L-10
SBG-03H-R-10 H : 35-120 bar
SBG-03H-L-10
SBG-06B-R-10 3/4″ B : 7-10 bar R TYPE L TYPE 210 200
SBG-06B-L-10
SBG-06C-R-10 C : 14-140 bar
SBG-06C-L-10
SBG-06H-R-10 H : 35-120 bar
SBG-06H-L-10
SBG-10B-R-10 1-1-4″ B : 7-10 bar R TYPE L TYPE 210 400
SBG-10B-L-10
SBG-10C-R-10 C : 14-140 bar
SBG-10C-L-10
SBG-10H-R-10 H : 35-120 bar
SBG-10H-L-10

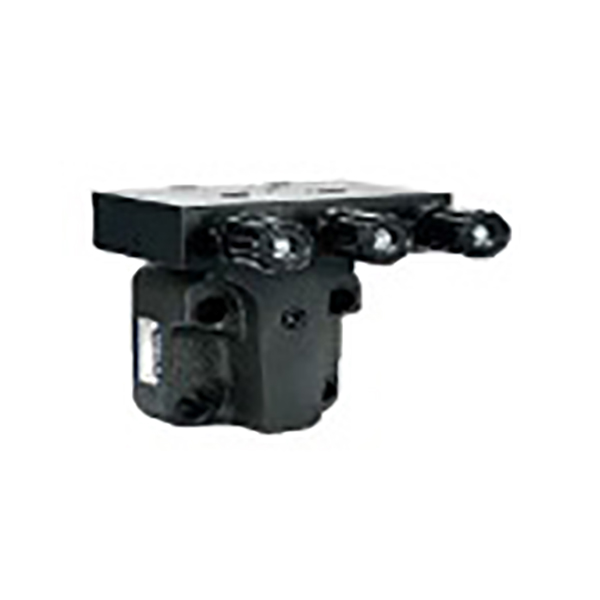

Solenoid Controlled Relief Valve (SRG Series)
MODEL VALVE SIZE TYPE OF CONNECTION WORING TYPE PRESSURE ADJ.RANGE MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
SRV-03G-2P-B-10 3/8″ G : SUB-PLATED TYPE 2P : 2 SECTION PRESSURE B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 100
SRV-03G-2P-B-10
SRV-03G-2P-H-10
SRV-03G-3P-B-10 3P : 3 SECTION PRESSURE
SRV-03G-3P-C-10
SRV-03G-3P-H-10
SRV-04T-2P-B-10 1/2″ T : THREAD TYPE 2P : 2 SECTION PRESSURE B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 100
SRV-04T-2P-C-10
SRV-04T-2P-H-10
SRV-04T-3P-B-10 3P : 3 SECTION PRESSURE
SRV-04T-3P-C-10
SRV-04T-3P-H-10
SRV-06G-2P-B-10 3/4″ G : SUB-PLATED TYPE 2P : 2 SECTION PRESSURE B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 200
SRV-06G-2P-C-10
SRV-03G-2P-H-10
SRV-06G-3P-B-10 3P : 3 SECTION PRESSURE
SRV-06G-3P-C-10
SRV-06G-3P-H-10
SRV-06T-2P-B-10 T : Thread Type 2P : 2 SECTION PRESSURE
SRV-06T-2P-C-10
SRV-06T-2P-H-10
SRV-06T-3P-B-10 3P : 3 SECTION PRESSURE
SRV-06T-3P-C-10
SRV-06T-3P-H-10
SRV-10G-2P-B-10             3/4″ G : SUB-PLATED TYPE   2P : 2 SECTION PRESSURE B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 400
SRV-10G-2P-C-10
SRV-10G-2P-H-10
SRV-10G-3P-B-10 3P : 3 SECTION PRESSURE
SRV-10G-3P-C-10
SRV-10G-3P-H-10
SRV-10T-2P-B-10   T : Thread Type 2P : 2 SECTION PRESSURE
SRV-10T-2P-C-10
SRV-10T-2P-H-10
SRV-10T-3P-B-10 3P : 3 SECTION PRESSURE
SRV-10T-3P-C-10
SRV-10T-3P-H-10

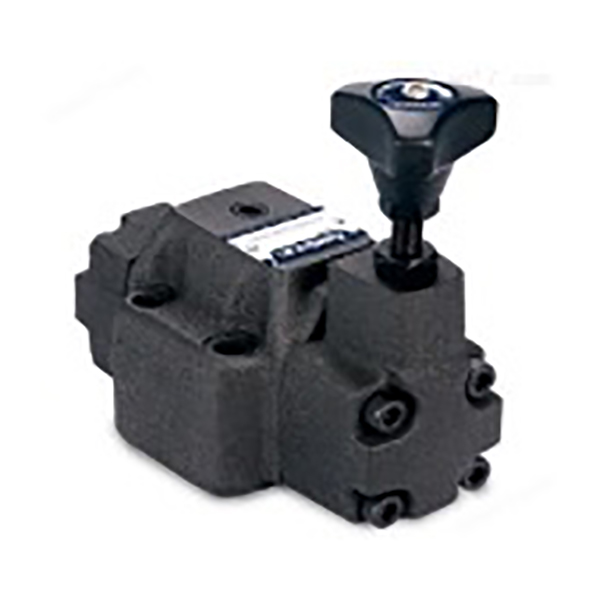

Pressure Reducing Valve (BRV Series)
MODEL VALVE SIZE TYPE OF CONNECTION PRESSURE ADJ.RANGE MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
BRV-02G-A-10 1/4″ G : SUB-PLATED TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 40
BRV-02G-B-10
BRV-02G-C-10
BRV-02G-H-10
BRV-02T-A-10 T : THREAD TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar
BRV-02T-B-10
BRV-02T-C-10
BRV-02T-H-10
BRV-03G-A-10 3/8″ G : SUB-PLATED TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 50
BRV-03G-B-10
BRV-03G-C-10
BRV-03G-H-10
BRV-03T-A-10 T : THREAD TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar
BRV-03T-B-10
BRV-03T-C-10
BRV-03T-H-10
BRV-06G-A-10 3/4″ G : SUB-PLATED TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 125
BRV-06G-B-10
BRV-06G-C-10
BRV-06G-H-10
BRV-06T-A-10 T : THREAD TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar
BRV-06T-B-10
BRV-06T-C-10
BRV-06T-H-10
BRV-10G-A-10  1-1/4″ G : SUB-PLATED TYPE   A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 250
BRV-10G-B-10
BRV-10G-C-10
BRV-10G-H-10
BRV-10T-A-10 T : Thread Type A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar
BRV-10T-B-10
BRV-10T-C-10
BRV-10T-H-10

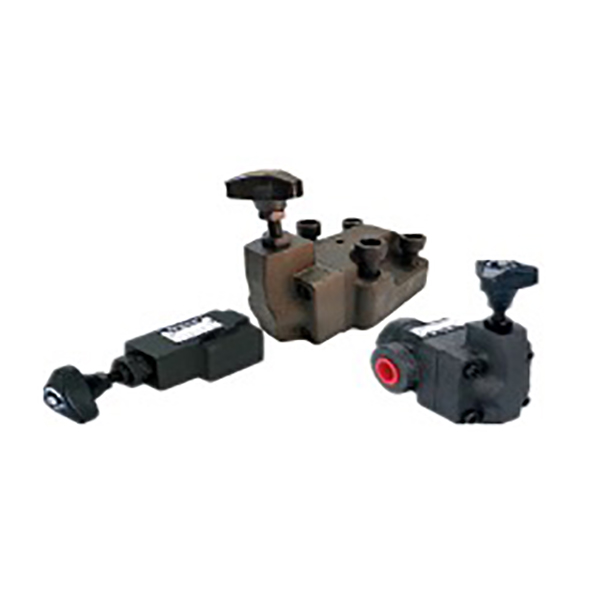

Pressure Reducing Valve and Check Valve (BRCV Series)
MODEL VALVE SIZE TYPE OF CONNECTION PRESSURE ADJ.RANGE MAX OPERATED PRESSURE (BAR) MAX. FLOW (L/MIN)
BRCV-03G-A-10 3/8″ G : SUB-PLATED TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 50
BRCV-03G-B-10
BRCV-03G-C-10
BRCV-03G-H-10
BRCV-03T-A-10 T : THREAD TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar
BRCV-03T-B-10
BRCV-03T-C-10
BRCV-03T-H-10
BRCV-06G-A-10 3/4″ G : SUB-PLATED TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 125
BRCV-06G-B-10
BRCV-06G-C-10
BRCV-06G-H-10
BRCV-06T-A-10 T : THREAD TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar
BRCV-06T-B-10
BRCV-06T-C-10
BRCV-06T-H-10
BRCV-10G-A-10 1-1/4″ G : SUB-PLATED TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar 210 250
BRCV-10G-B-10
BRCV-10G-C-10
BRCV-10G-H-10
BRCV-10T-A-10 T : THREAD TYPE A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar
BRCV-10T-B-10
BRCV-10T-C-10
BRCV-10T-H-10

Additional information

Manufacturer

ASHUN

Brand

ASHUN

Impresstech engineers carry Ashun brand, and is hydraulic valve and pneumatic valve supplier, as well as is hydraulic and pneumatic cylinder supplier. Ashun is customers’ first choice in the fluid power industry. We offers high quality and great value for money hydraulic and pneumatic cylinder and valve. Ashun has several cylinder series: standard cylinders, industrial machinery cylinders, vehicle equipment cylinders, lifting equipment cylinders, construction machinery cylinders and other applications. Ashun also design and develop high quality and competitive hydraulic valves, pneumatic valves, design and build customized valves that meet your requirements. For the hydraulic valves, we have 01 series modular valves, directional control valves, pressure control valves and flow control valves. Especially 01 series modular valves, which can be afforded high pressure (31.5MPa) and large flow (40L/min). For pneumatic valves, we have directional control valves and other valves.
